static
ultrasonic
pickup units
Static Pickup units transfer ultrasonic signals from ultrasonic tension sensors to MC950. The surrounding magnet attaches itself to the bolt head while the centered spring-loaded probe of the pickup touches an exposed surface of the sensor. A temperature sensor is embedded in some of the pickup units to measure the bolt temperature. The MC950 uses the temperature data to compensate for elongation due to the temperature changes.
Overview
External Hex Head Pickup Unit

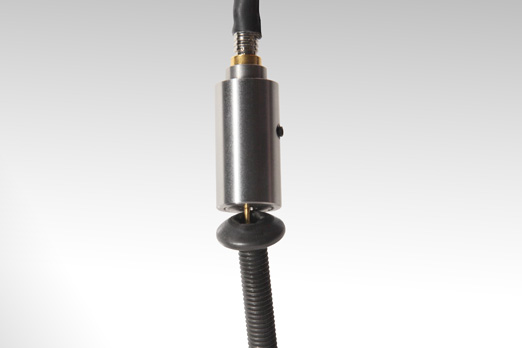

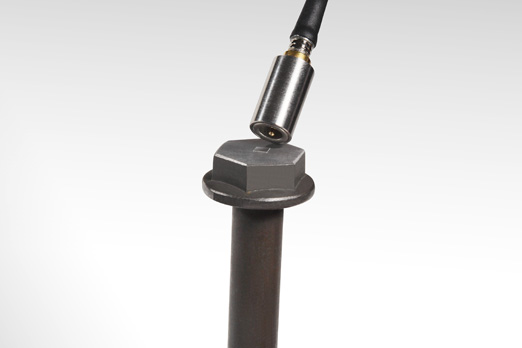

External Hex Head pickup units are designed to pick up ultrasonic signals from UTensor II sensors glued to the head of the hex head bolts. The surrounding magnet attaches itself to the bolt head while the centered spring-loaded probe of the pickup touches an exposed surface of the UTensor II, which is glued to the bolt. A temperature sensor is embedded in the unit to measure the bolt temperature. The MC950 uses the temperature data to compensate for elongation due to the temperature changes.
Range -40 to +100 degree C.
Cable: BNC to MCX

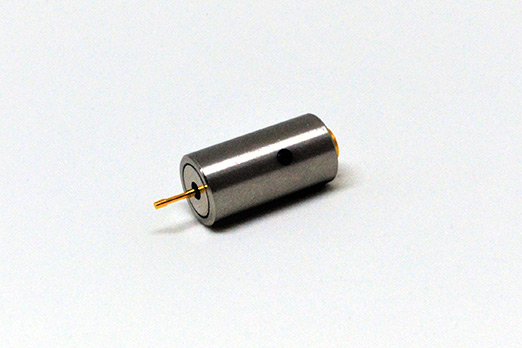

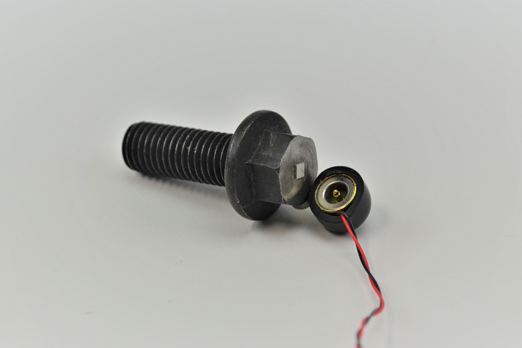

External Flat Head pickup unit for UTII with temperature sensor

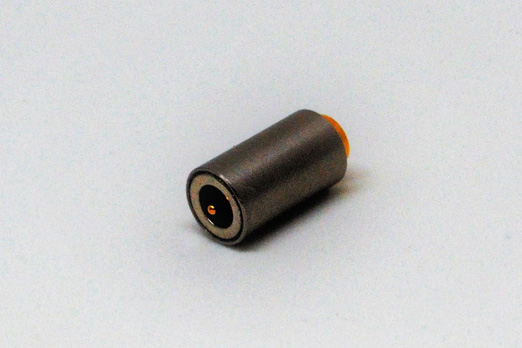

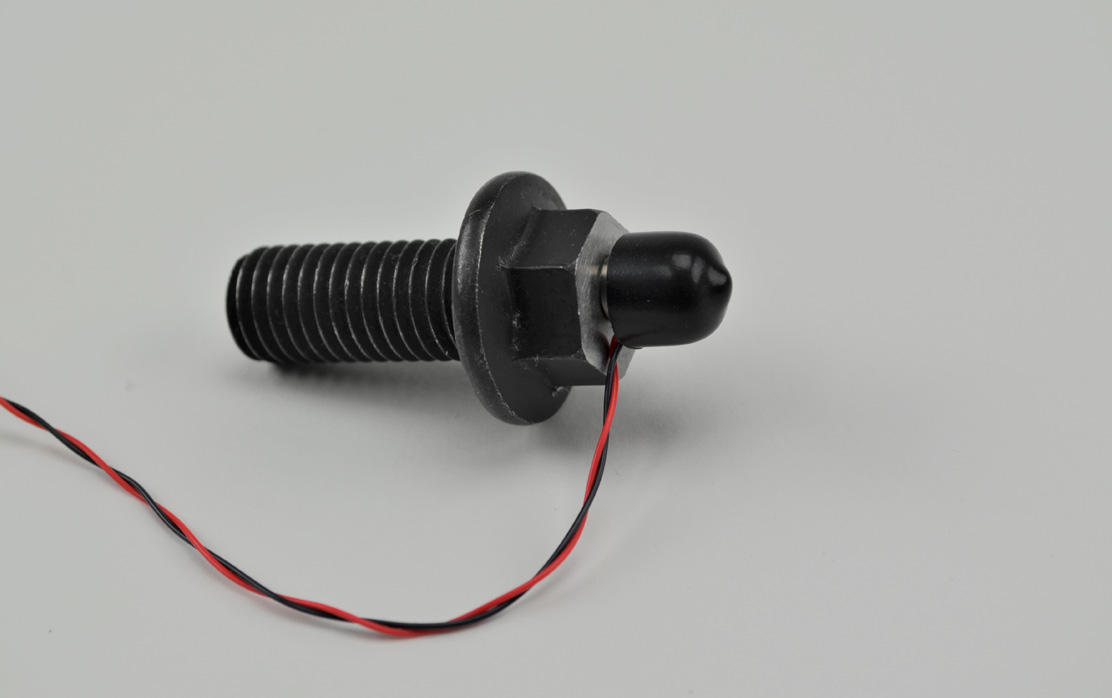

Low Profile pickup unit for UTII with temperature sensor

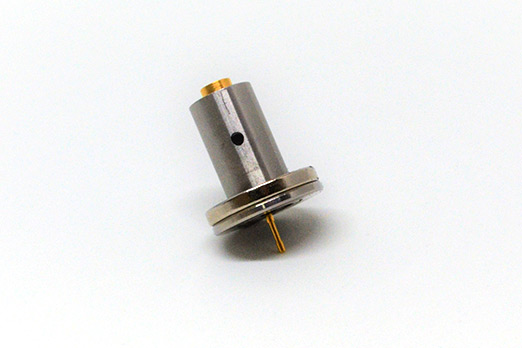

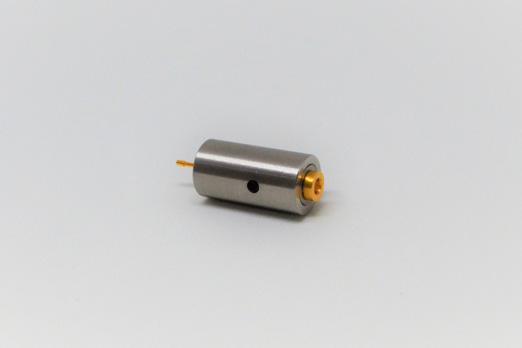

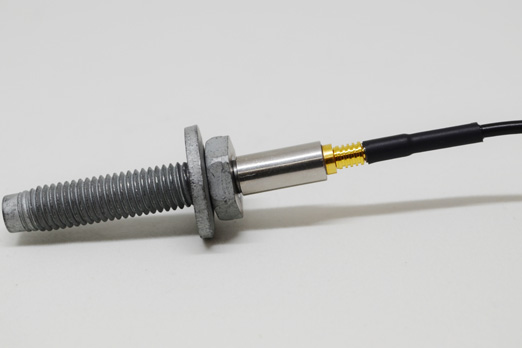

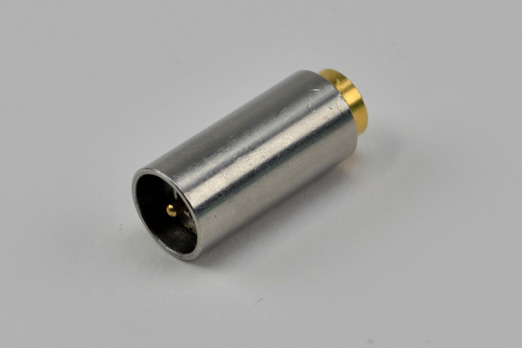

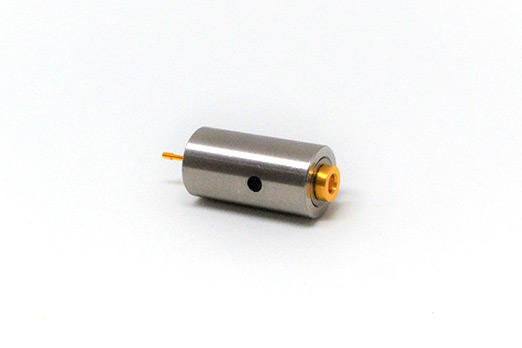

Internal Pick up unit Small for UTII

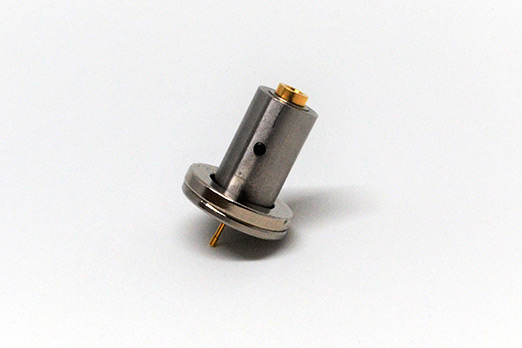

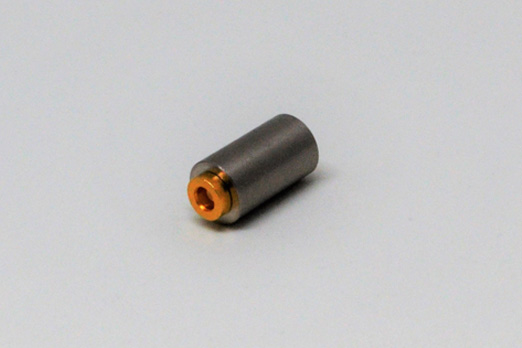

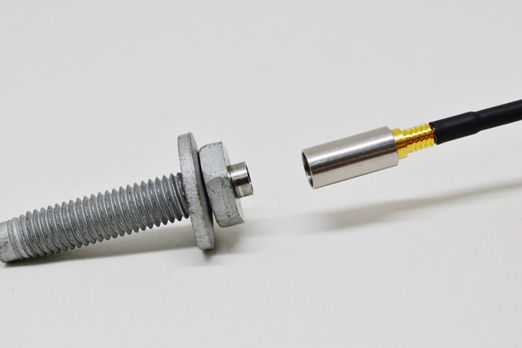

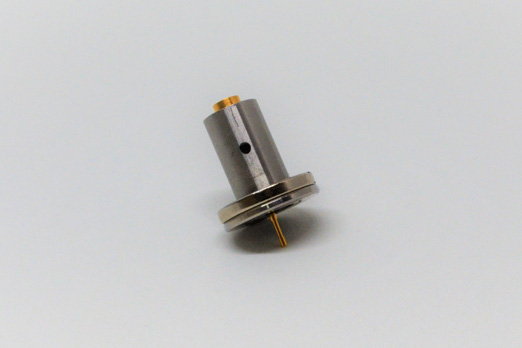

Internal Pick up unit Large for UTII

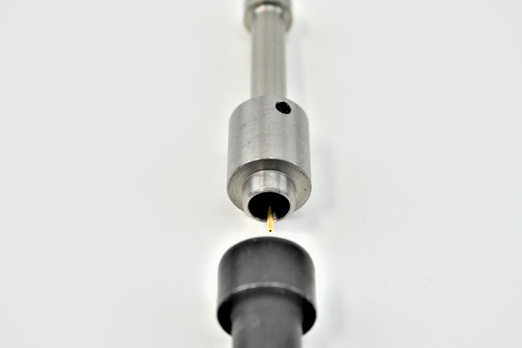

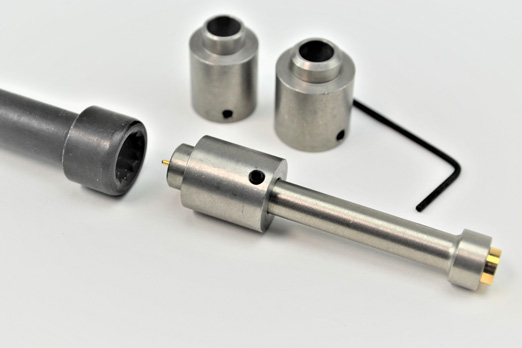

Internal Pick up unit Tall for UTII

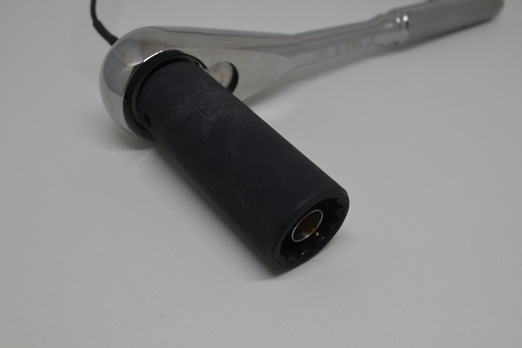

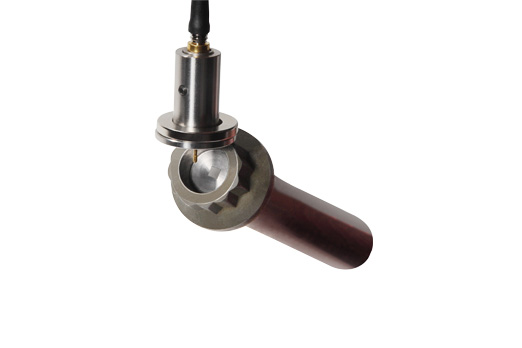

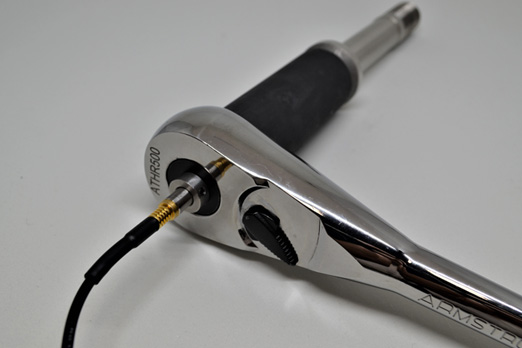

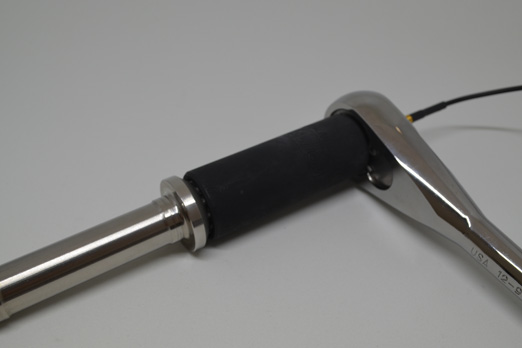

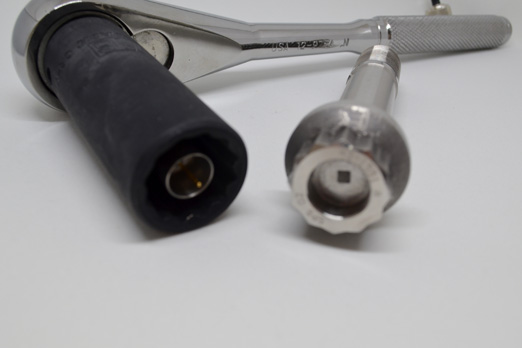

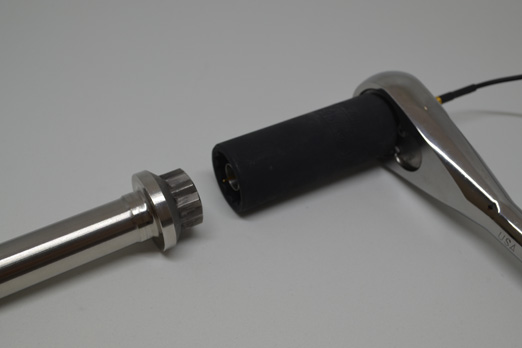

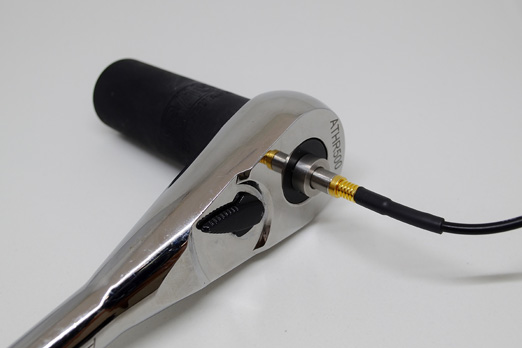

Socket Pickup up unit for UTII

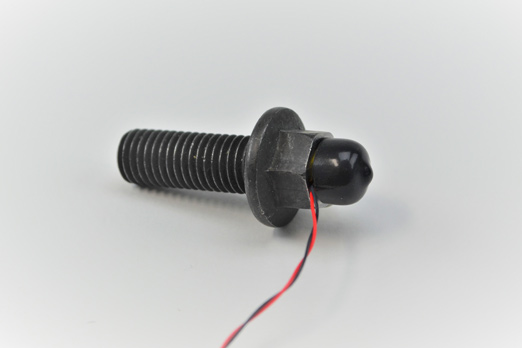

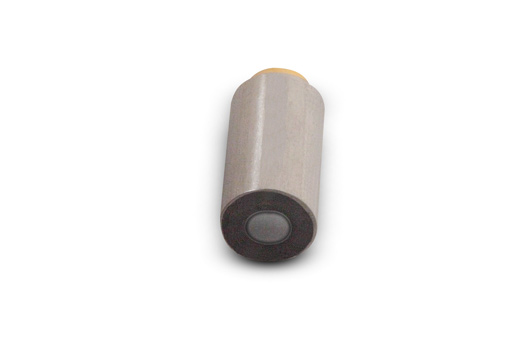

Pickup unit for UTIII with temperature sensor

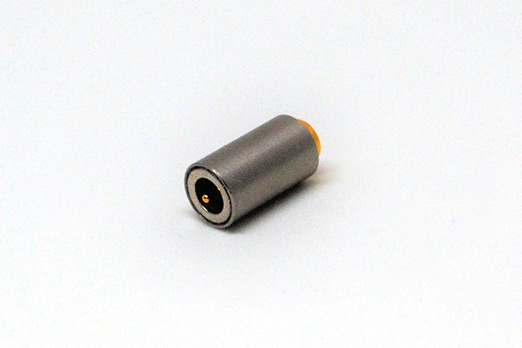

Low Profile Pickup unit for UTIII with temperature sensor

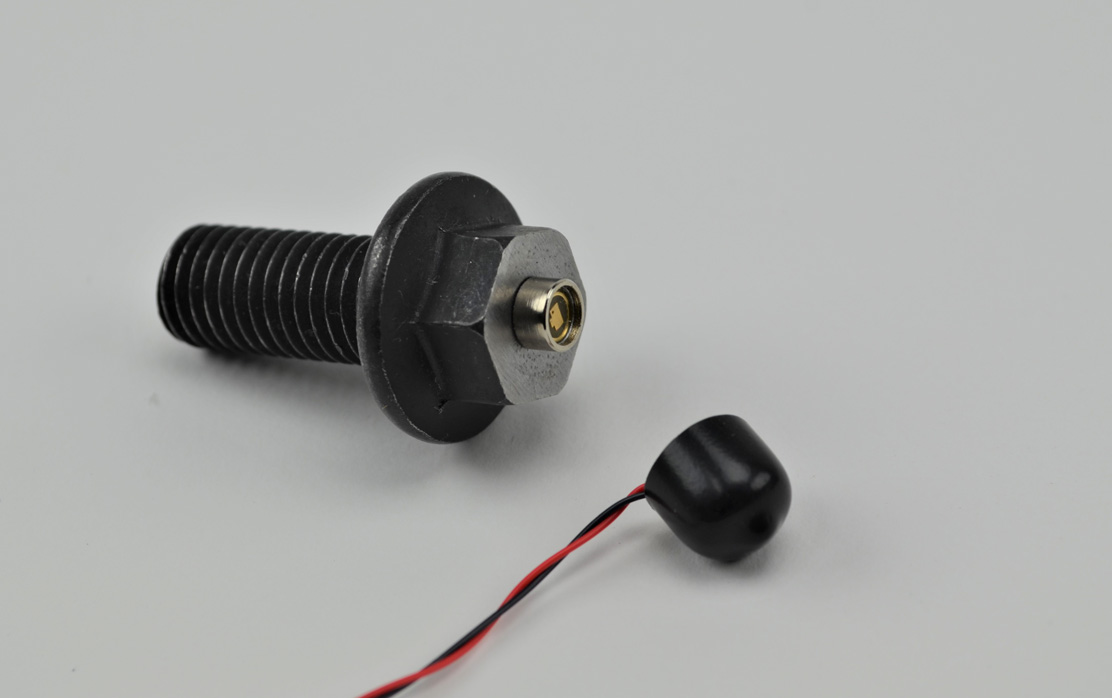

Temperature Sensor to the Static Pickup units
SPECS
To view the full specifications please download the PDF below.
