TORQUE ANGLE TRANSDUCER WITH UTRASONIC PICKUP (TAU)

TORQUE ANGLE
TRANSDUCER
WITH UTRASONIC
PICKUP (TAU)

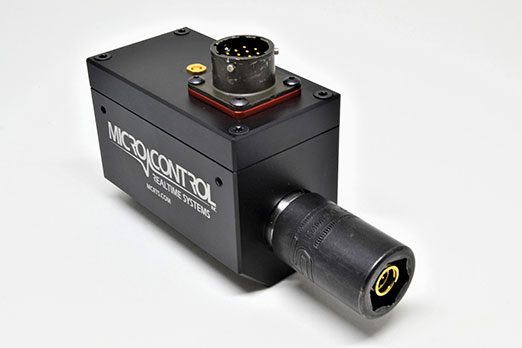

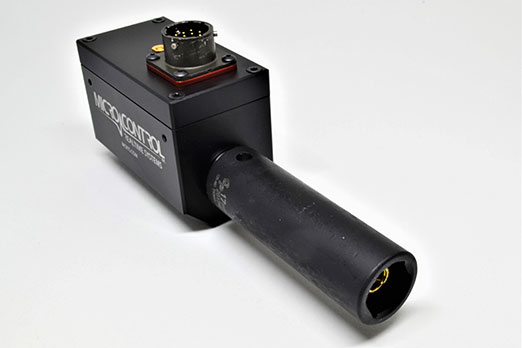

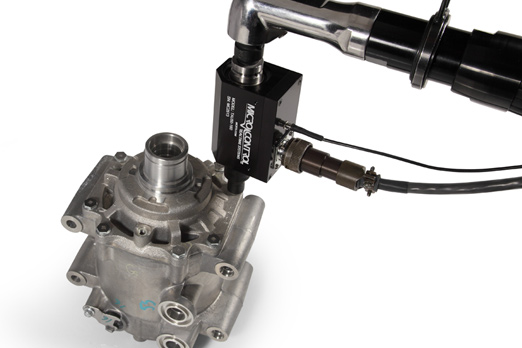

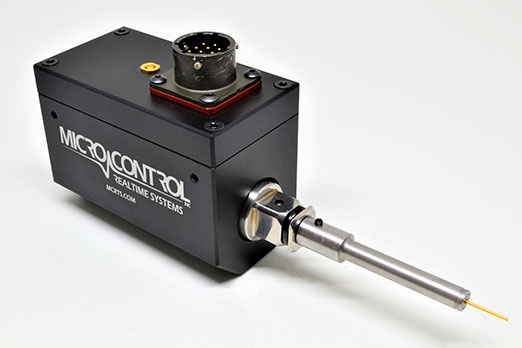

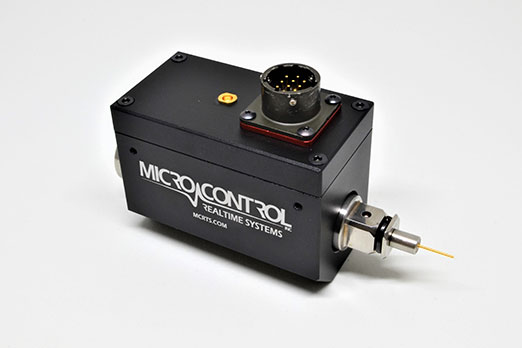

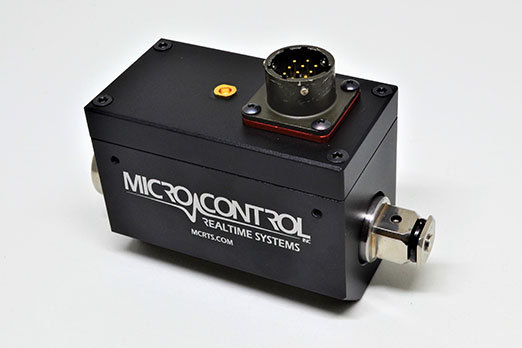

Rotating slip-ring torque angle with UPickII transducer is designed to measure torque, angle and ultrasonic tension while tightening a threaded fastener. The rotating shaft is machined from a single piece of rigid steel that is instrumented with full bridge strain gauges. Ultrasonic signals are pickup by the spring-loaded probe in center of the shaft that contacts an ultrasonic sensor glued to the head of a bolt. All ultrasonic and torque signals are conducted to the Bendix and MCX connectors via slip rings. The angle is measured by a durable optical encoder to withstand high-impact signals.

Overview

Measure:

Torque Only
Torque + Angle
Torque + Angle + Ultrasonic

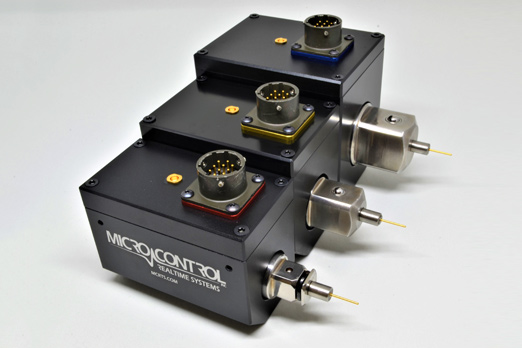

Capacities:

20Nm 3/8” Square Drive Model TAU037-20NM
50Nm ½” Square Drive Model TAU050-50NM
100Nm ½” Square Drive Model TAU050-100NM

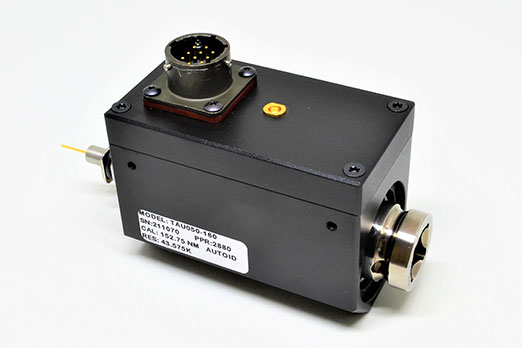

160Nm ½” Square Drive Model TAU050-160NM
200Nm ½” Square Drive Model TAU050-200NM
300Nm ¾” Square Drive Model TAU075-500NM
500Nm ¾” Square Drive Model TAU075-500NM
1000Nm 1” Square Drive Model TAU100-1000NM
2000Nm 1 1/2” Square Drive Model TAU150-2000NM

Specs

To view the full specifications please download the PDF below.

Download Spec PDF

Download Installation PDF
